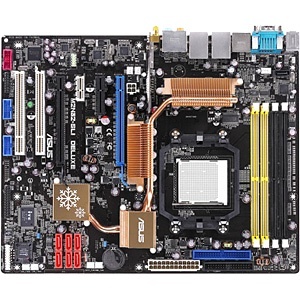

ASUS M2N32-SLI Deluxe/Wireless Desktop Board (90-MIB040-G0EAY)

Desktop Board - Athlon 64, Athlon 64 FX, Athlon 64 X2 Dual-core, Sempron - nVIDIA 590 SLI MCP - Socket AM2

17 in stock

The M2N32-SLI Deluxe supports dual PCI Express x16 slots running at full speed to liberate graphics cards from the narrow bandwidth platform of x8 speed only. With ASUS innovative AI Lifestylestyle features, such as AI Gear, 8-Phase Power Design, Stack Cool2 and special designed heat-pipe, the M2N32-SLI Deluxe brings you quiet and peaceful computing. This motherboard also bundles an unique Array Microphone and wireless AP function to satisfy the demand in digital life. Together with extreme over-clocking capability, you can easily enjoy faster graphics performance and higher video quality today, and be ready for the even more demanding tasks of tomorrow.

£77.70 ex vat   £91.30 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerASUS Computer International
Manufacturer Part Number90-MIB040-G0EAY
Manufacturer Website Addressuk.asus.com
Product SeriesAi Lifestyle
Product ModelM2N32-SLI Deluxe/Wireless
Product NameM2N32-SLI Deluxe/Wireless Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket AM2
Processor Support1 x Athlon 64 3000+ to Athlon 64 3800+
1 x Athlon 64 FX-62
1 x Athlon 64 X2 Dual-Core 3600+ to Athlon 64 X2 Dual-Core 5200+
1 x Sempron 2800+ to Sempron 3800+
Processor ClassAthlon 64
Athlon 64 FX
Athlon 64 X2 Dual-core
Sempron
ChipsetnVIDIA 590 SLI MCP

Memory
Total Memory Slots4
Memory Slots4 x 240-pin DIMM
Maximum Memory8GB
Memory Speed533MHz DDR2-533/PC2-4200
667MHz DDR2-667/PC2-5300
800MHz DDR2-800/PC2-6400
Memory TechnologyDDR2 SDRAM
Error CheckingECC
Non-ECC
Signal ProcessingUnbuffered

I/O Expansions
Expansion Slots2 x PCI Express x16
1 x PCI Express x4
1 x PCI Express x1
2 x PCI

Controllers
Sound ControllerAnalog Devices AD1988B 7.1-channel
Network Controller2 x Marvell 88E1116 Gigabit Ethernet 10/100/1000Mbps
Serial ATA ControllerSilicon Image Sil3132 3Gbps

Interfaces/Ports
Back Panel Interfaces1 x
2 x 6-pin mini-DIN (PS/2)
4 x 4-pin Type A USB 2.0 USB
1 x 9-pin DB-9 Male Serial
1 x SATA
1 x Toslink S/PDIF Out
1 x S/PDIF Out
2 x RJ-45 Network
1 x mini phone Microphone
1 x IEEE 1394a FireWire
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
1 x Antenna
Front Panel Interfaces1 x Power LED
1 x HDD LED
1 x On/Off Switch
1 x Reset Switch
1 x Speaker
1 x Audio Connector
1 x IEEE 1394a Header
On-Board Interfaces1 x Ultra ATA/133 (ATA-7) IDE
7 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions12.01" Width x 9.65" Depth

Miscellaneous
Package Contents
  • ASUS M2N32-SLI Deluxe/WiFi
  • IEEE 1394a module
  • 1 x 2-port USB 2.0 module
  • 1 x ASUS Q-Connector Kit (USB, 1394, system panel; Retail version only)
  • 6 x Serial ATA cable
  • 3 x Serial ATA power cables for six devices
  • 1 x Ultra DMA 133/100/66 cable
  • 1 x Floppy disk drive cable
  • Wireless antenna
  • I/O shield
  • ASUS SLI Bridge
  • ASUS Array Mic
  • ASUS Optional Fan
  • InterVideo Media Launcher (OEM version)
  • ASUS motherboard support CD
  • User guide
    		•
    Additional Information

    Support CD Contents:

  • Device Drivers
  • ASUS WiFi-AP Solo Wizard
  • ASUS AI Booster
  • ASUS PC Probe II
  • ASUS Update
  • NVIDIA MediaShield RAID
  • Anti-virus Utility (OEM version)

    • BIOS Features:

  • 8Mb Flash ROM
  • AMI BIOS
  • Plug and Play
  • DMI 2.0
  • WfM 2.0
  • SM BIOS 2.3

    • ASUS AI Lifestyle features:

  • ASUS AI Nap
  • ASUS AI Gear
  • Advanced Thermal Design:
    • ASUS Fanless Design: Heat-pipe Thermal solution
    • ASUS 8-Phase Power Design
    • Stack Cool 2
  • ASUS Crystal Sound:
    • Noise filter
    • ASUS Array Microphone
  • WiFi-AP Solo:
    • 54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
    • Software Access point mode
    • Infrastructure mode: Client or Ad-Hoc mode

    ASUS Exclusive Overclocking features:

  • Intelligent overclocking tools:
    • AI NOS (Non-delay Overclocking System)
    • AI Overclocking (Intelligent CPU frequency tuner)
    • ASUS PEG Link (Automatically performance tuning for graphics card)
    • ASUS AI Booster utility
  • Precision Tweaker:
    • vDIMM: 2-step DRAM voltage control
    • vCore: Adjustable CPU voltage at 0.0125V increment
    • Stepless Frequency Selection (SFS) allows FSB tuning from 200MHz to 450 MHz at 1MHz increment
    • PCI Express frequency allows PCI Express x16 frequency tuning from 100 MHz to 200 MHz at 1 MHz increment
  • Overclocking protection:
    • ASUS C.P.R. (CPU Parameter Recall)
  • ASUS AI Booster Utility

    • Special Features:

  • ASUS Music Alarm
  • ASUS MyLogo3
  • ASUS EZ DIY:
    • ASUS Q-Connector
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 2

    Warranty
    Standard Warranty3 Year Limited
