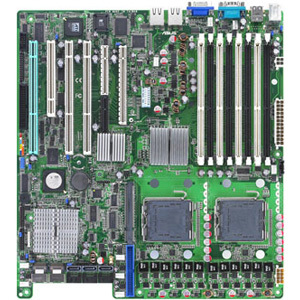

ASUS DSBF-D/SAS Server Board (90-MSVA10-G0UAY)

Server Board - Xeon Dual-Core, Xeon Quad-core - Intel 5000P - Socket J - 667MHz, 1066MHz, 1333MHz FSB

Waiting for stock  (expected back in stock: 05/08/2008)

DSBF-D/SAS Server Board supports Dual-Core / Quad-Core Intel Xeon processors 5000/5100/5300 Sequence and Intel 5000P chipset to improve performance and reliability. It's ready for the broadest range of 64-bit applications and with Intel VT and Intel I/OAT technology to focus on high-end server market. With 8 ECC FBD DIMM slots, DSBF-D/SAS can support 4-channel FBDIMM DDR2 533 /667 up to 16GB+ to significantly improve the serverboard's computing capability.

£226.32 ex vat   £265.93 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerASUS Computer International
Manufacturer Part Number90-MSVA10-G0UAY
Manufacturer Website Addressuk.asus.com
Product ModelDSBF-D/SAS
Product NameDSBF-D/SAS Server Board
Product TypeServer Board

Processor & Chipset
Processor Interface2 x Socket J
Processor Support2 x Xeon Dual-Core
2 x Xeon Quad-core
Processor ClassXeon Dual-Core
Xeon Quad-core
Front Side Bus667MHz
1066MHz
1333MHz
Featured TechnologiesHyper-Threading Technology
ChipsetIntel 5000P

Memory
Total Memory Slots8
Memory Slots8 x 240-pin DIMM
Maximum Memory32GB
Memory Speed533MHz DDR2-533/PC2-4200
667MHz DDR2-667/PC2-5300
Memory TechnologyDDR2 SDRAM
Error CheckingECC
Signal ProcessingRegistered
Fully Buffered

I/O Expansions
Expansion Slots3 x PCI-X 133/100MHz
1 x PCI 32-bit 33MHz
1 x PCI Express x8
1 x PCI Express x16
1 x SODIMM socket

Controllers
Graphics ControllerATi ES1000 16MB PCI
Network Controller1 x Intel 82563EB Gigabit Ethernet 10/100/1000Mbps

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
1 x 15-pin HD-15 Female VGA
2 x 4-pin Type A USB
1 x 9-pin DB-9 Male RS-232 Serial
2 x RJ-45 Network
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
2 x System Management Bus Header
1 x Chassis Intrusion Switch
1 x COM2
1 x USB Header For 2 Front Panel USB 2.0 Ports
1 x Parallel Port Header
On-Board Interfaces1 x Ultra ATA/100 (ATA-6) IDE
6 x Serial ATA/300 SATA
2 x Mini-SAS
1 x Floppy

Physical Characteristics
Dimensions30.48cm Width x 33.02cm Depth

Miscellaneous
Package Contents

  • DSBF-D/SAS Server Board
  • 6 x SATA Signal Cables
  • 3 x SATA Power Cables(dual-plug)
  • 2 x Mini-SAS Cable
  • 1 x IDE Cable
  • 1 x Floppy Cable
  • Support CD
  • CEK Spring
  • I/O Shield
  • User Guide

    		•
    Additional Information

    Chipsets:

  • 5000P
  • 6321ESB I/O Controller Hub
  • 6702PXH 64-bit PCI Hub

    • Hardware Monitoring:

  • CPU Temperature
  • FAN RPM

    		•
