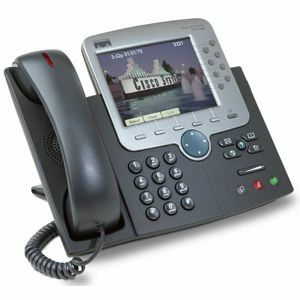

Cisco 7970G IP Phone (CP-7970G=)

2 x RJ-45 10/100Base-TX - IP Phone

2 in stock

The Cisco IP Phone 7970G demonstrates the latest technology and advancements in VoIP telephony. It addresses not only the needs of the executive or major decision maker but also brings network data and applications to users without PCs. This state-of-the-art IP phone includes a backlit, high-resolution color touch-screen display for easy access to communication information, timesaving applications, and feature usage. It also enables customers and developers to deliver more innovative and productivity-enhancing Extensible Markup Language (XML) applications to the display.

£208.59 ex vat   £245.09 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerCisco Systems, Inc
Manufacturer Part NumberCP-7970G=
Manufacturer Website Addresswww.cisco.com
Product Series7900
Product Name7970G IP Phone
Product TypeIP Phone

Technical Information
Phone Lines8
Phone FeaturesVolume Control
Comfort Noise Generation
Voice Activity Detection
Error Concealment
Silence Suppression
IP Phone TechnologyVoIP
Voice CodecG.711a
G.729a/b
G.711u
G.711
G.729a
Dialer TypeDial Pad

Network & Communication
Wireless TechnologyNot Applicable
Frequency Band/BandwidthNot Applicable
Data Transfer RateNot Applicable
Transmit PowerNot Applicable
Quality of Service802.1Q VLAN Support

Display & Graphics
Display ScreenLCD - Touch Screen
LCD - Colour Display

Interfaces/Ports
Interfaces/Ports2 x RJ-45 10/100Base-TX LAN

Management & Protocols
ProtocolsDHCP
CDP
TFTP

Controls/Indicators
Buttons & Keys1 x Messages Button
1 x Directories Button
1 x Settings Button
1 x Services Button
1 x Help Button
1 x Display Key
1 x Microphone Mute Button
1 x Speaker On/Off Button

Power Description
Input Voltage48 V AC
Power SourceIn-line
Adapter

Environmental Conditions
Temperature0 °C to 40 °C Operating
-10 °C to 60 °C Storage
Humidity10 to 95% Non-condensing Relative Humidity

Physical Characteristics
Dimensions23.11cm Height x 26.67cm Width x 15.24cm Depth
8.59cm Height x 11.43cm Width - Screen
Weight1.63 kg

Miscellaneous
Additional Information
  • Spare Production
  • Both Cisco pre-standard Power over Ethernet (PoE) and IEEE 802.3af PoE are supported
  • Providing improved information security, voice and data reliability
  • The audible dual tone multi-frequency (DTMF) tones are masked when the speakerphone mode is used
  • Integrated Ethernet switch

    • Settings:

  • Display contrast
  • Ring type
  • Network configuration
  • Call status

    • Display:

  • Resolution: 320 x 234
  • Supporting a 12-bit color depth

    • Stereo Jack Sockets:

  • Located on the side of the Cisco IP Phone 7970G is a 3.5-millimeter (mm) stereo jack socket for connection to auxiliary speakers or headphones, and a second 3.5-mm stereo jack socket for connection to a stereo microphone.

    • Note: auxiliary speakers, headphones, or microphones can only be used with external power adapters.
    Compatibility
  • The Cisco IP Phone 7970G is compatible with Cisco CallManager Version 3.3(3) and later, using the Skinny Client Control Protocol (SCCP)
    		•
    Certifications & Standards
  • IEEE 802.3af
  • CE Marking

    • Safety:

  • Underwriters Laboratories (UL) 60950
  • Canadian Standards Association (CSA) C22.2 No. 60950
  • Electro-Magnetic Compatibility (EMC)
  • Federal Communications Commission (FCC) Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • EN55022 Class B
  • CISPR22 Class B
  • AS/NZ 3548 Class B
  • VCCI Class B
  • EN55024
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3

    • Telecommunications

  • FCC Part 68 (CFR47) hearing aid compatible (HAC)
  • IC CS-03

    		•
    Software Support
  • Extensible Markup Language (XML) applications to the display
    		•
