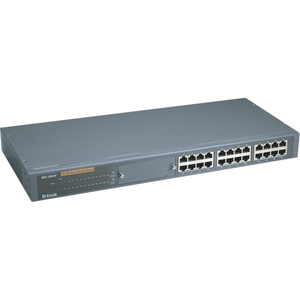

D-Link DES-1024R+ Rackmount Ethernet Switch (DES-1024R+)

24 x 10/100Base-TX - Ethernet Switch

17 in stock

Stock levels are updated every morning and reflect availability at our central warehouse, not at the DCS store.

D-Links DES-1024R+ is a high performance unmanaged Layer 2 Switch that provides users with 24 10/100Mbps Fast Ethernet ports with NWay auto-negotiation per port. Designed with a new chipset, the DES-1024R+ can automatically detect either MDI/MDIX cable type through any of the Ethernet ports, which eliminates the need for an uplink port. The DES-1024R+ includes support for an optional 2-port 100BASE-FX module with an "SC connector" increasing cable connectivity to other servers and switches. The DES-1024R+ is targeted for both small office and small business environments.

With the DES-1024R+ switching function, Store and Forward is implemented with Rate Adaptation Protocol. (RAP) is an end-to-end rate-based congestion control mechanism, which ensures data integrity when packets are transmitted.With its rack mount design and ease of installation, the DES-1024R+ switch provides a cost effective way of increasing total bandwidth where network traffic is continuously increasing.

£48.15 ex vat   £56.58 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerD-Link Systems, Inc
Manufacturer Part NumberDES-1024R+
Manufacturer Website Addresswww.dlink.co.uk
Brand NameD-Link
Product NameDES-1024R+ Rackmount Ethernet Switch
Product TypeEthernet Switch

Interfaces/Ports
Number of Ports24
Fast Ethernet PortYes
Interfaces/Ports24 x RJ-45 10/100Base-TX LAN

Media & Performance
Connectivity MediaCategory 3 UTP 10Base-T
Category 4 UTP 10Base-T
100 ohm STP 10/100Base-TX
Category 5 UTP 10/100Base-TX
Distance Support100m Category 3 UTP
100m Category 5 UTP
100m STP
100m Category 4 UTP
Performance4.8Gbps Backplane Speed
14880pps Forwarding/Filtering for 10 Mbps Ethernet
148800pps Forwarding/Filtering for 100 Mbps Ethernet

I/O Expansions
Number of Expansion Slots1
Expansion Slots(1 Total) Expansion Slot Uplink
ModulesNot Included

Network & Communication
Flow ControlIEEE 802.3x (Full-duplex)
Back Pressure (Half-duplex)
Switching MethodStore-and-forward
Layer Support2
Address Table4K MAC Addresses

Management & Protocols
ProtocolsRAP

Controls/Indicators
Status Indicators
  • Per device: Power

    • Per 10/100Mbps port:

  • 100Mbps speeds
  • Link/activity

    		•

    Power Description
    Input Voltage110V AC
    220V AC
    Frequency50 Hz or 60 Hz
    Power Consumption39 W Maximum
    Power SourcePower Supply

    Environmental Conditions
    Temperature0 °C to 50 °C Operating
    -25 °C to 55 °C Storage
    Humidity5% to 95% Non-condensing

    Physical Characteristics
    Form FactorRack-mountable
    Desktop
    Dimensions4.4cm Height x 44.1cm Width x 20.7cm Depth
    Weight2.7kg

    Miscellaneous
    Package Contents
  • One DES-1024R+ 10/100 Fast Ethernet Switch
  • One AC power cord
  • User s Guide
  • Four rubber feet with adhesive backing
  • Screws and two L-type brackets for rack mounting
    		•
    Additional Information
  • Access Method: CSMA/CD
  • RAM Buffer: 256KB per 8 ports
  • Auto-correction of twisted-pair polarity reverse
  • 1 Expansion slot for 2 optional 100Mbps fiber ports
  • Module (DES-102F): 2 x 100BASE-FX Ports
  • RAM buffer dynamically allocated for each port
  • DC Fan: One built-in 40 x 40 x 10 mm DC fan
    		•
    Certifications & Standards

    IEEE Standard:

  • IEEE 802.3 10Base-T
  • IEEE 802.3X
  • ANSI/IEEE 802.3 NWay
  • IEEE 802.3u 100Base-TX/100BASE-FX

    EMI:

  • FCC Class A
  • CE Mark Class A
  • VCCI Class A
  • BSMI Class A
  • C-Tick Class A

    • Safety:

  • UL (UL 1950)
  • CSA (CSA950)
  • TUV/GS (EN60950)

    		•

    Warranty
    Standard Warranty2 Year
