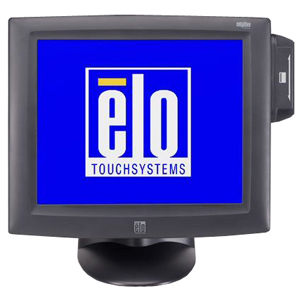

Tyco Electronics Elo 3000 Series 1725L TouchScreen LCD Monitor (E103047)
17" - 5-wire Resistive - 1280 x 1024 - 5:4 - Dark Grey
Waiting for stock (expected back in stock: 21/05/2008)
The 1725L-MSR touchmonitor is based on the popular 1725L touchmonitor but includes an integrated three-stripe, ergonomically-placed magnetic stripe reader (MSR). The MSR is incorporated into the monitor housing and is designed to flow with the elegant styling of the monitor, rather than looking like a tacked-on afterthought. The 1725L-MSR is targeted toward applications that require the use of credit/debit cards, loyalty cards, and other card transactions. Unlike most MSRs, the 1725L-MSR also reads the third data stripe, normally reserved for applications such as customer loyalty programs. Elo has positioned the MSR unit ergonomically on the top, right corner so that the user can swipe the card flat with a natural action. Unique USB hub inside the monitor allows a single USB cable to carry both the touch signal and MSR data.
*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.
Product Information
General Information |
|
| Manufacturer | Elo TouchSystems, Inc |
| Manufacturer Part Number | E103047 |
| Manufacturer Website Address | www.elotouch.com |
| Product Series | 3000 |
| Product Model | 1725L |
| Product Name | 3000 Series 1725L TouchScreen LCD Monitor |
Technical Information |
|
| Actual Screen Size | 17" |
| Viewable Screen Size | 17" |
| Projection Technology | Active Matrix TFT |
| Input Signal | Analog Digital |
| Response Time | 25 ms |
| Viewing Angle | 140° Horizontal / 127° Vertical |
| Mountable | Wall-mountable |
| Platform Support | PC Mac |
Display & Graphics |
|
| Maximum Resolution | 1280 x 1024 @ 75Hz |
| Resolution | 1280 x 1024 @ 60 Hz to 75 Hz Native Resolution 1024 x 768 @ 60 Hz to 75 Hz 832 x 624 @ 75 Hz 800 x 600 @ 56 Hz to 75 Hz 720 x 400 @ 70 Hz 640 x 480 @ 60 Hz to 75 Hz |
| Colour Support | 16.7 Million Colours (24-bit) |
| Scanning Frequency | 31.5 kHz to 80 kHz Horizontal 56 Hz to 75 Hz Vertical |
| Aspect Ratio | 5:4 |
| Contrast Ratio | 450:1 |
| Brightness | 260 cd/m² 213 cd/m² with Touch Screen |
Touch Screen Information |
|
| Screen Technology | AccuTouch |
| Touchscreen Type | 5-wire Resistive |
Interfaces/Ports |
|
| Ports | 1 x DVI-D 1 x 15-pin HD-15 VGA 1 x USB 1 x Serial |
Built-in Devices |
|
| Speakers | Speaker Integrated |
Power Description |
|
| Input Voltage | 110 V AC or 220 V AC |
Environmental Conditions |
|
| Temperature | 0 °C to 40 °C Operating -20 °C to 60 °C Storage |
| Humidity | 20 to 80% Non-condensing Operating 5 to 95% Non-condensing Storage |
Physical Characteristics |
|
| Colour | Dark Grey |
| Dimensions | 42.93cm Height x 43.43cm Width x 24.43cm Depth - Including base |
| Weight | 10.07 kg Approximate |
Miscellaneous |
|
| Package Contents | |
Warranty |
|
| Standard Warranty | 3 Year |
