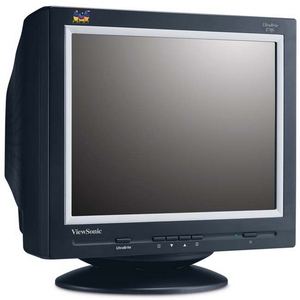

Viewsonic E2 Series E70F+SB CRT Monitor (E70FSB)

17" - Flat CRT - 0.25mm - Metallic Black

14 in stock

A brighter idea - the E70f+SB 17" (16.0" viewable) CRT.

The E70f+SB monitor combines ViewSonic's award-winning PerfectFlat® screen with high-brightness UltraBrite technology for exceptional performance, convenient versatility and excellent value. Ideal for home, office and school, the E70f+SB is up to three times brighter than conventional displays for dazzling clarity in any viewing situation. Toggle for graphics, video, movies and gaming, where vivid color and ultradetailed viewing are critical. Toggle again for optimum viewing of text intensive applications like word processing, spreadsheets and e-mail. With an ultra-fine 0.21mm horizontal dot pitch, 1024x768 optimum resolution and features like OSD lock and OnView® controls, the stylish metallic-onblack E70f+SB is a solid choice.
£72.31 ex vat   £84.96 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerViewsonic Corporation
Manufacturer Part NumberE70FSB
Manufacturer Website Addresswww.viewsoniceurope.com/uk/
Product SeriesE2
Product NameE2 Series E70F+SB CRT Monitor
Product TypeFlat CRT

Technical Information
Actual Screen Size17"
Viewable Screen Size16"
Screen SurfaceAnti-reflective
Anti-glare
Anti-static
Pixel Pitch0.25mm Diagonal
Input SignalRGB (Analog)
Video Bandwidth120 MHz Typical
Platform SupportPC
Mac

Display & Graphics
Maximum Resolution1280 x 1024 @ 67Hz
Resolution1280 x 1024 @ 67Hz Maximum Resolution
1024 x 768 @ 89Hz Flicker Free Resolution
Mac Compatible Modes1280 x 1024
Graphics Preset Modes1280 x 1024 @ 67Hz
1024 x 768 @ 89Hz
800 x 600 @ 112Hz
Scanning Frequency30 kHz to 72 kHz Horizontal
50 Hz to 150 Hz Vertical

Interfaces/Ports
Ports1 x 15-pin HD-15 VGA

Controls/Indicators
Front Panel Controls
  • Power on/off
  • key-1
  • Down
  • Up
  • key-2
  • One-touch Auto-adjust
    		•
    OSD Controls
  • Contrast
  • Brightness
  • H/V size
  • H/V position
  • Pincushion
  • Pin Balance
  • Trapezoid
  • Parallelogram
  • Tilt
  • Degauss
  • H/V moiré
  • Reduction
  • ViewMeter®
  • Zoom
  • Language
  • ViewMatch® color (9300, 6500, 5000, user color)
  • OSD position
  • Memory
  • Recall
    		•

    Power Description
    Frequency50 Hz or 60 Hz ±3
    Power ManagementMPR II
    EPA Energy Star

    Environmental Conditions
    Temperature0 °C to 40 °C Operating
    Humidity5 to 95% Non-condensing Operating

    Physical Characteristics
    ColourMetallic Black
    Dimensions40.64cm Height x 40.39cm Width x 42.42cm Depth
    Weight16.28 kg

    Miscellaneous
    Additional Information
  • UltraBrite 3X technology: UltraBrite technology enables optimized viewing of video and graphics applications. Games, TV and DVDs come alive with rich, saturated color and vivid contrast. Precise definition and photorealistic image quality boost 3-D video and professional graphics performance.
  • UltraBrite hot key: Toggle through brightness modes with a touch of a button.
  • .21mm horizontal dot pitch: This ultra-fine dot pitch produces clear, crisp images with precise picture definition, even at the highest resolutions.
  • PerfectFlat® screen: Absolutely flat screen provides realistically proportioned, precise images with reduced reflection, image distortion and eye fatigue.
  • SuperClear® technology: SuperClear screen technology incorporates enhanced phosphor treatment and optimized glass filter to deliver vivid colors and image clarity.
  • OnView® controls including ViewMatch® features: Screen adjustments are made via an on-screen menu using simple controls. This user-friendly control system easily adjusts image quality, size, position and geometry for optimal viewing.
  • One-Touch Auto-Adjust function: Size and position automatically adjust with the touch of a button, filling the screen at any resolution.
  • OSD lock function: When activated, user-controlled OSD lock function prevents changes to monitor settings, maintaining an optimized image.
  • Turn your monitor into a high-resolution TV: Easily hook up favorite extras like a DVD, VCR, digital camera or gaming console to this display with the optional video processing box.
  • Phosphor: RGB P22 medium/short persistence
  • Video: RGB analog (75 ohms, 0.7/1.0 Vp-p)
  • Sync: H/V separated (TTL), composite
  • Power: 3-pin plug (IEC320)
  • COMPATIBILITY:
    - PC: IBM compatible from VGA up to 1280x1024
    - Mac®*: Power Mac G3/G4 up to 1280x1024

    *Adapter may be required
    		•
