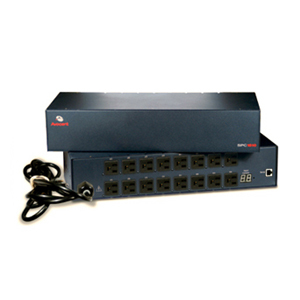

Avocent SPC 16-Port 13A PDU (SPC1620H2-201)

16 x IEC 320 EN 60320 C13 - 2U Rack-mountable

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerAvocent Corporation
Manufacturer Part NumberSPC1620H2-201
Manufacturer Website Addresswww.avocent.co.uk
Brand NameAvocent
Product LineSPC
Product NameSPC 16-Port 13A PDU
Product TypePDU

Technical Information
Output Receptacles16 x IEC 320 EN 60320 C13

Power Description
Input Voltage200 V AC to 250 V AC
230 V AC
Output Voltage200 V AC to 250 V AC
Current13A Input Current
Frequency50 Hz
60 Hz

Interfaces/Ports
Interfaces/Ports1 x RJ-45 RS-232 Network Port

Environmental Conditions
Temperature-15 °C to 55 °C Operating
-40 °C to 85 °C Storage
Humidity10 to 90% Non-condensing Relative Humidity

Physical Characteristics
Form Factor2U Rack-mountable
Dimensions8.89cm Height x 43.18cm Width x 20.32cm Depth
Weight5.44 kg

Miscellaneous
Additional Information
  • Intelligent Power Management: Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
  • Integrated Power Management: Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
  • Ease of Use: Available in horizontal and vertical mountable 16 outlet models. (Also available in 4 and 8-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
  • Naming Associations: Users can create an association between a server name and specific SPC outlet port(s)
  • Redundant Power Supply Configurations: Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
  • Power Monitoring: Dynamically measures and reports total input current load and indicates on / off state for every port
  • Security: In addition to port specific and command specific access control, the SPC power control device provides advanced user authentication and data encryption when combined with the Avocent CPS appliance
  • Local and Remote Power Load Measurement: Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit

    • Note: DSView 3 software is sold separately.
    Certifications & Standards
  • European Union (TUVGS mark) to 60950
  • US & Canada:
    • cTUVus mark to UL 60950 3rd Ed.
    • CAN/CSA 22.2 No.60950-00
