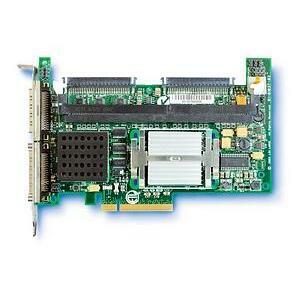

Intel SRCU42E Ultra-320 Dual Channel SCSI RAID Controller (SRCU42E)

128MB ECC DDR SDRAM - - Up to 320MBps per Channel - 2 x 68-pin VHDCI (mini-Centronics) Ultra320 SCSI - SCSI External, 2 x 68-pin HD-68 Ultra320 SCSI - SCSI Internal

Waiting for stock  (expected back in stock: 16/07/2008)

Engineered around the Intel IOP332 500MHz I/O processor based on Intel XScale technology, the Intel RAID Controller SRCU42E provides an intelligent storage solution for mission-critical servers by protecting vital data while offloading RAID processing from the server. The RAID Controller SRCU42E provides an extensive selection of RAID capabilities, including support for RAID 0, 1, 5, 10, and 50 and for RAID management software through the Intel RAID Web Console. This GUI-based tool provides a central, unified environment for simplifying the management of remote servers on a network and other critical monitoring and management activities.

£324.80 ex vat   £381.64 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerIntel Corporation
Manufacturer Part NumberSRCU42E
Product NameSRCU42E Ultra-320 Dual Channel SCSI RAID Controller
Manufacturer Website Addresswww.intel.co.uk
Product TypeSCSI RAID Controller

Technical Information
Host InterfacePCI Express
Data Transfer RateUp to 320MBps per Channel
SCSI ProtocolsUltra320 SCSI
RAID Levels0
1
5
10
50
Drive SupportUp to 30 x Physical
Platform SupportPC
Unix

Processor & Chipset
ProcessorIntel IOP332 500MHz

Memory
Standard Memory128MB ECC DDR SDRAM
Maximum Memory512MB ECC DDR SDRAM

Interfaces/Ports
Ports2 x 68-pin VHDCI (mini-Centronics) Ultra320 SCSI LVD - SCSI External
2 x 68-pin HD-68 Ultra320 SCSI LVD - SCSI Internal

Software
Software Included

  • Intel RAID BIOS Console
  • Intel RAID Web Console
  • Intel RAID Flash Utilities

    		•

    Power Description
    Input Voltage3.3 V DC
    12 V DC
    Input Current1.5A @ 3.3V DC Maximum
    1.4A @ 12V DC Without battery
    1.6A @ 12V DC Battery Charging
    Power Consumption25W

    Environmental Conditions
    Temperature0 °C to 55 °C Operating
    -40 °C to 105 °C Non-operating
    Humidity5 to 90% Non-condensing Relative Humidity

    Physical Characteristics
    Form FactorHalf-length Plug-in Card
    Dimensions10.67cm Height x 17.53cm Width

    Miscellaneous
    Additional Information

  • Status Indicators: Audible alarm, I2C connector (enclosure management)
  • The LSI Logic 53c1030 Ultra320 SCSI Controller Supports integrated mirroring
  • Reliability: Optional Intel Portable Cache Module provides up to 72 hours of cache data retention
  • Scalability: Online RAID-level migration and capacity expansion, without the need for reboot
  • Configuration Flexibility: Variable stripe size, variable cache options, drive coercion, array spanning, variable rebuild rate
  • Availability: Auto hot-spare, automatic rebuild, auto rebuild resume, drive roaming, controller migration, online capacity expansion, remote monitoring and management
  • Based on theoretical maximum peak bandwidth of PCI-X 133 at 1GB/s versus PCI Express x8 at 4GB/s

    		•
    System Requirements

  • Intel-based server or equivalent with PCI Express x8 slot

    		•
    Compatibility

    Supported Operating System:

  • Microsoft Windows Server 2003 Enterprise Edition
  • Microsoft Windows 2000 Advanced Server
  • Novell NetWare
  • Red Hat Enterprise Linux
  • SCO OpenServer
  • SCO UnixWare
  • SUSE LINUX Professional
  • SUSE LINUX Enterprise Server

    		•
    Certifications & Standards

    Certification (Safety and/or EMC):

  • Australia/New Zealand: Not applicable / AS/NZS 3548 Class B
  • Canada: CSA/UL 60950 / ICES-003 Class B Europe: EN60950 / CE Directive 73/23/EEE/EN5022 Class B / EN5024 / CE Directive 89/336/EEC
  • International: IEC 60950 / CISPR 22 Class B
  • Korea: Not applicable / RRL
  • Japan: Not applicable / Class B (Verification only)
  • Taiwan: Not applicable / CNS 13438 Class B
  • United States: UL60950 / FCC Class B

    • Regulatory Marks (Safety and/or EMC):

  • Australia/New Zealand: C-Tick
  • Canada: ETL / ICES
  • Europe: CE
  • International: Not Applicable
  • Korea: MIC
  • Japan: VCCI
  • Taiwan: BSMI
  • United States: ETL / FCC

    		•

    Warranty
    Standard Warranty3 Year Limited
