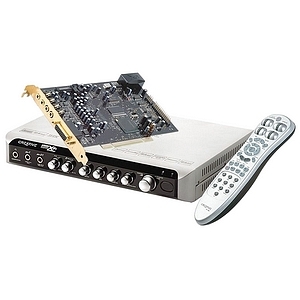

Creative Labs Creative Sound Blaster X-Fi Elite Pro Sound Card (70SB055A02000)

Sound Board - USB - 24 bit - Internal

4 in stock

Stock levels are updated every morning and reflect availability at our central warehouse, not at the DCS store.

Maximum power, maximum quality, maximum connectivity. Creative's Sound Blaster X-Fi Elite Pro delivers Xtreme Fidelity audio creation and entertainment to the PC. Its premium quality 116dB SNR DACs deliver unsurpassed audio quality, while the external I/O module includes guitar, microphone and headphone jacks with independent volume controls. Other features include a phono preamp for direct recording from vinyl, with audio clean-up, MIDI I/O, and optical and coaxial digital I/O. Front panel controls give direct access to EAX effects, 24-bit Crystalizer to restore 'sparkle' to recordings, and CMSS-3D for stunning headphone surround and up-mix. Audio Creation Mode features bit-accurate ASIO at multiple sample rates with latency as low as 1ms. With 24-bit Effects, 24-bit SoundFont sampling and 3D MIDI, this is the ultimate in audio quality, connectivity and control for the PC.

£172.14 ex vat   £202.26 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerCreative Technology, Ltd
Manufacturer Part Number70SB055A02000
Manufacturer Website Addressuk.europe.creative.com
Brand NameCreative
Product LineSound Blaster
Product SeriesX-Fi
Product NameSound Blaster X-Fi Elite Pro Sound Card
Product TypeSound Board

Technical Information
Host InterfaceUSB
Signal to Noise Ratio (SNR)116 dB
Sampling Rate24bit 192kHz Stereo DAC
24bit 96kHz ADC
24bit 96kHz 7.1 Channel DAC
DAC Data Width24bit
Sound Channels7.1
Platform SupportPC

Memory
Standard Memory64 MB
Memory TechnologyX-RAM

Interfaces/Ports
Interfaces/Ports1 x FlexiJack - (Digital In / Line In / Microphone)
3 x 3.5mm Mini Jack Audio Line Out - (Front / Side / Rear / Center / Subwoofer)
1 x 26-pin - (AD_Link - for linking to the X-Fi I/O Console)

Software
Software IncludedX-Fi Music Creation Softwares:
  • Steinberg-Cubase LE
  • Steinberg-WaveLab Lite
  • IK Multimedia-Amplitude LE
Installation and Application Softwares:
  • Drivers for Windows XP
  • Creative Software Suite
  • Doom 3 Sound Blaster EAX patch
  • User's Guide
  • Music Creation Guide

Physical Characteristics
Form FactorInternal

Miscellaneous
Package Contents
  • Sound Blaster X-Fi Elite Pro Sound Card
  • X-Fi I/O Console
  • Remote Control
  • 2x Batteries (AA)
  • Rubber Feet (x4)
  • Vertical Stand
  • 6.35 mm (1/4-inch) to 3.50 mm (1/8-inch) plug adapter
  • Power Splitter Cable
  • Volume Control Cable (9-pin DIN)
  • AD_Link Cable
  • X-Fi Music Creation Softwares CD
  • Quick Start Leaflet
  • Installation and Applications CD
    		•
    Additional Information
  • ASIO 2.0 support
  • CMSS-3D
  • AUX_IN line-level analog input via 4-pin Molex connector on Card
    I/O Drive Connectivity:
    • Two RCA jacks for coaxial SPDIF input and output
    • Shared Auxiliary input/Phono input via RCA stereo jacks
    • Two optical connectors for optical SPDIF input and output
    • Two standard MIDI female connectors for MIDI input and output
    • Headphone output and volume control via 6.35 mm (1/4-inch) stereo jack
    • Shared line-level analog Line/Microphone input via 6.35 mm (1/4-inch) stereo jack
    • Shared line-level analog Line/Hi-Z input via 6.35 mm (1/4-inch) stereo jack
    • DIN jack to connect Creative analog speaker systems with the wired remote control or Audio Control Pod that comes with the speakers
    • One AD_LINK connector for linking to the audio card
    		•
    System Requirements
  • Genuine Intel Pentium III 1 GHz, AMD 1 GHz processor or faster
  • Intel, AMD or 100% compatible motherboard chipset
  • Microsoft Windows XP (Service Pack 2 )
  • 512MB RAM
  • 600MB of free hard disk space
  • PCI 2.1 slot for the audio card
  • CD/DVD drive required for software installation
  • Graphics card with DirectX 9 and OpenGL compliant 3D graphics accelerator
    		•

    Warranty
    Standard Warranty2 Year Limited
