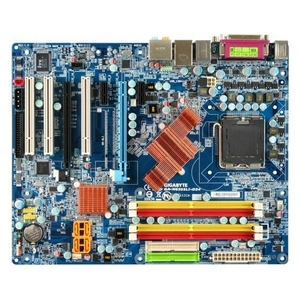

GIGA-BYTE GA-N650SLI-DS4 Desktop Board (GA-N650SLI-DS4)

Desktop Board - Core 2 Extreme Quad-core, Core 2 Quad, Core 2 Duo, Pentium (Extreme Edition), Pentium 4, Celeron-D, Core 2 Extreme - nVIDIA nForce 650i SLI - Socket T - 800MHz, 1066MHz, 1333MHz FSB

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerGIGA-BYTE TECHNOLOGY CO
Manufacturer Part NumberGA-N650SLI-DS4
Manufacturer Website Addressuk.giga-byte.com
Product ModelGA-N650SLI-DS4
Product NameGA-N650SLI-DS4 Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket T
Processor Support1 x Core 2 Extreme Quad-core 2.66GHz
1 x Core 2 Quad 2.4GHz
1 x Core 2 Duo 1.8GHz to 2.66GHz
1 x Pentium (Extreme Edition) 3.2GHz to 3.73GHz
1 x Pentium 4 2.66GHz to 3.8GHz
1 x Celeron-D 2.53GHz to 3.46GHz
1 x Core 2 Extreme 2.93GHz
Processor ClassCore 2 Extreme Quad-core
Core 2 Quad
Core 2 Duo
Pentium (Extreme Edition)
Pentium 4
Celeron-D
Core 2 Extreme
Front Side Bus800MHz
1066MHz
1333MHz
Featured TechnologiesHyper-Threading Technology
ChipsetnVIDIA nForce 650i SLI

Memory
Total Memory Slots4
Memory Slots4 x 240-pin DIMM
Maximum Memory8GB
Memory Speed400MHz DDR2-400/PC2-3200
533MHz DDR2-533/PC2-4200
667MHz DDR2-667/PC2-5300
800MHz DDR2-800/PC2-6400
Memory TechnologyDDR2 SDRAM
Error CheckingECC
Signal ProcessingUnbuffered

I/O Expansions
Expansion Slots2 x PCI Express x16
2 x PCI Express x1
3 x PCI

Controllers
Sound ControllerRealtek ALC888 7.1-channel
Network Controller1 x Marvell 88E1116 Gigabit Ethernet 10/100/1000Mbps

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
4 x 4-pin Type A USB 2.0 USB
1 x 9-pin DB-9 Male RS-232 Serial
1 x Toslink S/PDIF Out
1 x S/PDIF Out
1 x 25-pin DB-25 Female IEEE 1284 Parallel
1 x RJ-45 Network
1 x mini phone Microphone
1 x IEEE 1394a FireWire
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
1 x Audio Connector
1 x CD-in/Aux-in Connector
1 x S/PDIF In
2 x USB Header For 4 Additional USB 2.0 Port
2 x IEEE 1394a Header For 2 Additional Ports
On-Board Interfaces2 x Ultra ATA/133 (ATA-7) IDE
4 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions12.01" Width x 9.61" Depth

Miscellaneous
Package Contents

  • GA-N650SLI-DS4 Desktop Board
  • 1 x IDE Cable
  • 1 x FDD Cable
  • 4 x SATA 3Gb/s Cable
  • 1 x I/O Shield
  • 1 x SLI Bridge
  • 1 x Retention Bracket
  • Support CD

    		•
    Additional Information

    ROHS Compliant

    Chipset:

  • Northbridge: NVIDIA C55
  • Southbridge: NVIDIA MCP51

    • Unique Features:

  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Xpress BIOS Rescue

    • Hardware Monitoring:

  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU warning temperature
  • CPU/System/Power fan failure warning
  • CPU/System Smart Fan Control

    • BIOS Features:

  • 2 4 Mbit flash ROM
  • Use of licensed AWARD BIOS
  • Supports Dual BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

    		•

    Warranty
    Standard Warranty3 Year Limited
