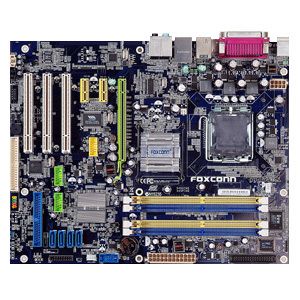

Foxconn 945P7AD-8EKRS2H Desktop Board (945P7AD-8EKRS2H)

Desktop Board - Pentium 4, Celeron, Pentium 4 (Extreme Edition), Pentium D, Core 2 Extreme, Core 2 Duo - Intel 945P - Socket T - 533MHz, 800MHz, 1066MHz FSB

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerFoxconn Electronics, Inc
Manufacturer Part Number945P7AD-8EKRS2H
Manufacturer Website Addresswww.foxconn.com
Product Model945P7AD-8EKRS2H
Product Name945P7AD-8EKRS2H Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket T
Processor ClassPentium 4
Celeron
Pentium 4 (Extreme Edition)
Pentium D
Core 2 Extreme
Core 2 Duo
Front Side Bus533MHz
800MHz
1066MHz
Featured TechnologiesHyper-Threading Technology
ChipsetIntel 945P

Memory
Total Memory Slots4
Memory Slots4 x 240-pin DIMM
Maximum Memory4GB
Memory Speed400MHz DDR2-400/PC2-3200
533MHz DDR2-533/PC2-4300
667MHz DDR2-667/PC2-5300
Memory TechnologyDDR2 SDRAM

I/O Expansions
Expansion Slots1 x PCI Express x16
2 x PCI Express x1
3 x PCI

Controllers
Sound ControllerRealtek ALC 861 7.1-channel
Network Controller1 x Realtek RTL8111B Gigabit Ethernet 10/100/1000Mbps PCI Express

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
1 x 15-pin HD-15 Female VGA
4 x 4-pin Type A USB 2.0 USB
1 x S/PDIF Out
1 x 25-pin DB-25 Female IEEE 1284 Parallel
1 x RJ-45 Network
1 x mini phone Microphone
1 x IEEE 1394a FireWire
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
1 x IrDA
1 x IEEE 1394 Header
2 x USB Header For 4 Front Panel USB 2.0 Ports
1 x S/PDIF Out
1 x COM1
1 x Speaker
On-Board Interfaces1 x Ultra ATA/133 (ATA-7) IDE
1 x Ultra ATA/100 (ATA-6) IDE
4 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions30.48cm Width x 24.38cm Depth

Miscellaneous
Additional Information

Chipset:

  • Northbridge: Intel 945P
  • Southbridge: Intel ICH7R

    • BIOS Features:

  • LPC 4MB
  • ACPI 2.0b
  • APM 1.2
  • PnP 1.0a
  • SMBIOS 2.3
  • USB 2.0

    • Support CD Contents:

  • Drivers
  • DirectX
  • Adobe Reader
  • SuperUtilities
  • Norton Internet Security
  • Create RAID tool
  • Live update

    • Standards/Manageability:

  • PCI 2.3
  • USB2.0
  • DMI 2.0

    • Special Features:

  • SuperBoot
  • SuperBIOS-Protect
  • SuperLevel
  • SuperStep
  • Ratio Free
  • Q.B.U

    		•

    Warranty
    Standard Warranty3 Year Limited
