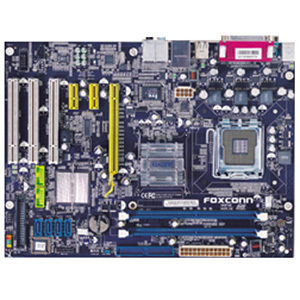

Foxconn 945PL7AE-8KS2HV Desktop Board (945PL7AE-8KS2HV)

Desktop Board - Core 2 Duo, Pentium 4, Pentium 4 (Extreme Edition), Pentium D, Celeron-D - Intel 945PL - Socket T - 533MHz, 800MHz FSB

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerFoxconn Electronics, Inc
Manufacturer Part Number945PL7AE-8KS2HV
Manufacturer Website Addresswww.foxconn.com
Product Model945PL7AE-8KS2HV
Product Name945PL7AE-8KS2HV Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket T
Processor Support1 x Celeron-D 2.53GHz to 2.93GHz
1 x Pentium 4 2.66GHz to 3.8GHz
Processor ClassCore 2 Duo
Pentium 4
Pentium 4 (Extreme Edition)
Pentium D
Celeron-D
Front Side Bus533MHz
800MHz
Featured TechnologiesHyper-Threading Technology
ChipsetIntel 945PL

Memory
Total Memory Slots2
Memory Slots2 x 240-pin DIMM
Maximum Memory2GB
Memory Speed400MHz DDR2-400/PC2-3200
533MHz DDR2-533/PC2-4200
Memory TechnologyDDR2 SDRAM

I/O Expansions
Expansion Slots1 x PCI Express x16
2 x PCI Express x1
3 x PCI

Controllers
Sound ControllerRealtek 861VD 7.1-channel
Network Controller1 x Realtek 8111B Gigabit Ethernet 10/100/1000Mbps PCI Express

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
4 x 4-pin Type A USB 2.0 USB
1 x 9-pin DB-9 Male RS-232 Serial
1 x S/PDIF
1 x 25-pin DB-25 Female IEEE 1284 Parallel
1 x RJ-45 Network
1 x mini phone Microphone
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
1 x CD-in/Aux-in Connector
1 x IrDA
2 x USB Header For 4 Front Panel USB 2.0 Ports
1 x Speaker
1 x S/PDIF Out
1 x Audio Connector
On-Board Interfaces1 x Ultra ATA/100 (ATA-6) IDE
4 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions29.46cm Width x 21.84cm Depth

Miscellaneous
Additional Information

Chipset:

  • Northbridge: Intel 945PL
  • Southbridge: Intel ICH7

    • BIOS Features:

  • FWH 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3

    • Support CD Contents:

  • Drivers
  • DirectX
  • Adobe Reader
  • SuperUtilities
  • Norton Internet Security

    • Standards/Manageability:

  • PCI 2.3, USB2.0, DMI 2.0, WfM2.0

    • Special Features:

  • SuperBoot
  • SuperBIOS-Protect
  • SuperLevel
  • SuperStep
  • Ratio Free
  • BIOS Q.B.U

    		•

    Warranty
    Standard Warranty3 Year Limited
