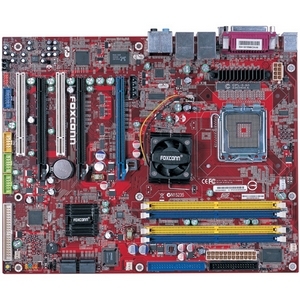

Foxconn 975X7AB-2.0-8EKRS2 Desktop Board (975X7AB-2.0-8EKRS2)

Desktop Board - Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium D, Pentium 4, Celeron-D - Intel 975X - Socket T - 533MHz, 800MHz, 1066MHz FSB

13 in stock

975X7AB-2.0-8EKRS2 Desktop Board if one of the new products, and offers superior performance, reliability and quality, at a reasonable price. This motherboard adopts the advanced Intel 975X and ICH7R chipset, providing users a computer platform with a high integration-compatibility-performance price ratio.

£87.06 ex vat   £102.30 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerFoxconn Electronics, Inc
Manufacturer Part Number975X7AB-2.0-8EKRS2
Manufacturer Website Addresswww.foxconn.com
Product Model975X7AB-2.0-8EKRS2
Product Name975X7AB-2.0-8EKRS2 Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket T
Processor ClassCore 2 Quad
Core 2 Extreme
Core 2 Duo
Pentium D
Pentium 4
Celeron-D
Front Side Bus533MHz
800MHz
1066MHz
Featured TechnologiesHyper-Threading Technology
ChipsetIntel 975X

Memory
Total Memory Slots4
Memory Slots4 x 240-pin DIMM
Maximum Memory8GB
Memory Speed533MHz DDR2-533/PC2-4200
667MHz DDR2-667/PC2-5300
800MHz DDR2-800/PC2-6400
Memory TechnologyDDR2 SDRAM
Error CheckingECC
Non-ECC
Signal ProcessingUnbuffered

I/O Expansions
Expansion Slots3 x PCI Express x16
2 x PCI

Controllers
Sound ControllerRealtek ALC 888 7.1-channel
Network Controller1 x Marvell 88E8056 Gigabit Ethernet 10/100/1000Mbps
1 x Realtek 8110SC Gigabit Ethernet 10/100/1000Mbps

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
4 x 4-pin Type A USB 2.0 USB
1 x SATA
1 x Toslink S/PDIF Out
1 x S/PDIF Out
1 x 25-pin DB-25 Female IEEE 1284 Parallel
2 x RJ-45 Network
1 x mini phone Microphone
1 x IEEE 1394a FireWire
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
1 x CD-in/Aux-in Connector
1 x Audio Connector
1 x IrDA
1 x Speaker
1 x IEEE 1394 Header For 1 Additional Port
2 x USB Header For 4 Additional USB 2.0 Ports
1 x S/PDIF Out
On-Board Interfaces1 x Ultra ATA/133 (ATA-7) IDE
1 x Ultra ATA/100 (ATA-6) IDE
4 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions30.48cm Width x 24.38cm Depth

Miscellaneous
Additional Information

Chipset:

  • Northbirdge: Intel 975X
  • Southbridge: Intel ICH7R

    • BIOS Features:

  • 4Mb flash EEPROM w/ LAN boot PnP
  • ACPI, WfM, DMI 2.0

    • Support CD Contents:

  • Drivers
  • DirectX
  • Adobe Reader
  • Super Utility
  • Norton Internet Security

    • Standards/Manageability:

  • PCI 2.3
  • USB2.0
  • DMI 2.0

    		•

    Warranty
    Standard Warranty3 Year Limited
