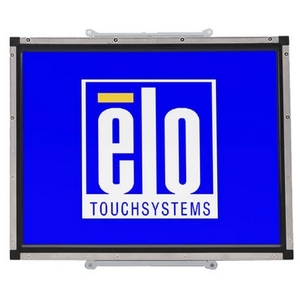

Tyco Electronics Elo 1000 Series 1537L Touchscreen LCD Monitor (E788823)

15" - 5-wire Resistive - 4:3 - Black

Waiting for stock  (expected back in stock: 13/06/2008)

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology.

£435.48 ex vat   £511.69 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerElo TouchSystems, Inc
Manufacturer Part NumberE788823
Manufacturer Website Addresswww.elotouch.com
Product Series1000
Product Model1537L
Product Name1000 Series 1537L Touchscreen LCD Monitor

Technical Information
Actual Screen Size15"
Viewable Screen Size15"
Projection TechnologyActive Matrix TFT
Screen SurfaceAnti-glare
Input SignalAnalog
Response Time17 ms
Viewing Angle120° Horizontal / 100° Vertical
MountableVESA
Platform SupportPC
Mac
Sun

Display & Graphics
Maximum Resolution1024 x 768
Resolution1024 x 768 @ 70 Hz to 75 Hz Native Resolution
800 x 600 @ 56 Hz to 75 Hz
720 x 400 @ 70 Hz
720 x 350 @ 70 Hz
640 x 480 @ 72 Hz to 75 Hz
Colour Support16.7 Million Colours (24-bit)
Scanning Frequency31.5 kHz to 60.2 kHz Horizontal
56.3 Hz to 75 Hz Vertical
Aspect Ratio4:3
Contrast Ratio400:1
Brightness250 cd/m²
205 cd/m² with Touch Screen

Touch Screen Information
Screen TechnologyAccuTouch
Touchscreen Type5-wire Resistive

Interfaces/Ports
Ports1 x 15-pin HD-15 VGA
1 x USB
1 x Serial

Controls/Indicators
Front Panel Controls
  • Menu
  • Up
  • Down
  • Select
  • Power
    		•

    Power Description
    Input Voltage110 V AC or 220 V AC

    Environmental Conditions
    Temperature0 °C to 40 °C Operating
    -20 °C to 60 °C Storage
    Humidity20 to 80% Non-condensing Operating
    10 to 90% Non-condensing Storage

    Physical Characteristics
    ColourBlack
    Dimensions26.39cm Height x 33.6cm Width x 4.09cm Depth
    Weight2.99 kg

    Miscellaneous
    Package Contents
  • 1000 Series 1537L Touchscreen LCD Monitor
  • North American power cable
  • European power cable
  • Detachable touch cable
  • Video cable
  • Mounting brackets
    		•

    Warranty
    Standard Warranty3 Year
