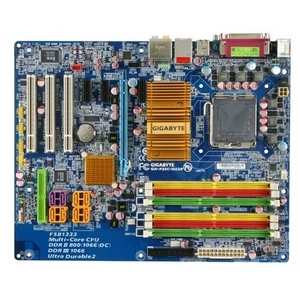

GIGA-BYTE GA-P35C-DS3R Desktop Board (GA-P35C-DS3R)

Desktop Board - Core 2 Extreme Quad-core, Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium (Extreme Edition), Pentium 4, Celeron-D, Celeron, Pentium 4 (Extreme Edition) - Intel P35 Express - Socket T - 533MHz, 800MHz, 1066MHz, 1333MHz FSB

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerGIGA-BYTE TECHNOLOGY CO
Manufacturer Part NumberGA-P35C-DS3R
Manufacturer Website Addressuk.giga-byte.com
Product SeriesUltra Durable 2
Product ModelGA-P35C-DS3R
Product NameGA-P35C-DS3R Desktop Board
Product TypeDesktop Board

Processor & Chipset
Processor Interface1 x Socket T
Processor Support1 x Core 2 Extreme Quad-core 2.66GHz
1 x Core 2 Quad 2.4GHz
1 x Core 2 Extreme 2.93GHz
1 x Core 2 Duo 1.6GHz to 2.66GHz
1 x Pentium (Extreme Edition) 3.2GHz to 3.73GHz
1 x Pentium 4 2.66GHz to 3.8GHz
1 x Celeron-D 2.53GHz to 3.46GHz
1 x Celeron 1.8GHz to 2GHz
1 x Pentium 4 (Extreme Edition) 3.4GHz to 3.73GHz
Processor ClassCore 2 Extreme Quad-core
Core 2 Quad
Core 2 Extreme
Core 2 Duo
Pentium (Extreme Edition)
Pentium 4
Celeron-D
Celeron
Pentium 4 (Extreme Edition)
Front Side Bus533MHz
800MHz
1066MHz
1333MHz
Featured TechnologiesHyper-Threading Technology
ChipsetIntel P35 Express

Memory
Total Memory Slots6
Memory Slots6 x 240-pin DIMM
Maximum Memory8GB
Memory Speed667MHz DDR2-667/PC2-5300
800MHz DDR2-800/PC2-6400
800MHz DDR3-800/PC3-6400
1066MHz DDR3-1066/PC3-8500
1333MHz DDR3-1333/PC3-10600
Memory TechnologyDDR3 SDRAM
DDR2 SDRAM

I/O Expansions
Expansion Slots1 x PCI Express x16
3 x PCI Express x1
3 x PCI

Controllers
Sound ControllerRealtek ALC889A 7.1-channel
Network Controller1 x Realtek RTL8111B Gigabit Ethernet 10/100/1000Mbps

Interfaces/Ports
Back Panel Interfaces2 x 6-pin mini-DIN (PS/2)
4 x 4-pin Type A USB 2.0 USB
1 x 9-pin DB-9 Male RS-232 Serial
1 x Toslink S/PDIF Out
1 x S/PDIF Out
1 x 25-pin DB-25 Female IEEE 1284 Parallel
1 x RJ-45 Network
1 x mini phone Microphone
4 x mini phone Audio Line Out
1 x mini phone Audio Line In
Front Panel Interfaces1 x HDD LED
1 x Reset Switch
1 x On/Off Switch
1 x Power LED
1 x Chassis Intrusion Switch
4 x USB Header
1 x S/PDIF In
1 x CD-in/Aux-in Connector
1 x Audio Connector
On-Board Interfaces1 x Ultra ATA/133 (ATA-7) IDE
8 x Serial ATA/300 SATA
1 x Floppy

Physical Characteristics
Dimensions30.5cm Width x 24.5cm Depth

Miscellaneous
Additional Information

  • ROHS Compliant
  • Native DDR2-1066MHz support available
  • Populating DDR2 and DDR3 memory modules simultaneously is not supported

    • Chipset:

  • Northbridge: Intel P35 Express Chipset
  • Southbridge: Intel ICH9R

    • BIOS Features:

  • Supports Virtual DualBIOS
  • 1 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

    • Unique Features:

  • Ultra Durable 2 Motherboard
  • All Japanese manufactured solid
  • Over-clocking Enhanced
  • Support for @BIOS
  • Support for Download Center
  • Support for Q-Flash
  • Support for EasyTune
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for Virtual Dual BIOS

    • Hardware Monitoring:

  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU fan speed control

    • Supported Operating Systems:

  • Microsoft Windows Vista
  • Microsoft Windows XP
  • Microsoft Windows 2000

    		•

    Product Reviews

    HEatsink problems

    I am having problems with this motherboard. The northbridge chipset (under the gold heatsink) is overheating. Ive just ordererd a new heatsink to see if it will solve the problem. Apart from that the board is really good

    Posted by Jimjam jonny, Aug 13 2007 3:10PM
