Adaptec 29320A-R Single Channel Ultra 320 SCSI RAID Controller (2060500-R)

Up to 320MBps per Channel - 1 x 68-pin HD-68 Ultra320 SCSI - SCSI External, 1 x 68-pin HD-68 Ultra320 SCSI - SCSI Internal, 1 x 68-pin HD-68 Wide Ultra SCSI - SCSI Internal, 1 x 50-pin IDC Ultra Narrow - SCSI Internal

4 in stock

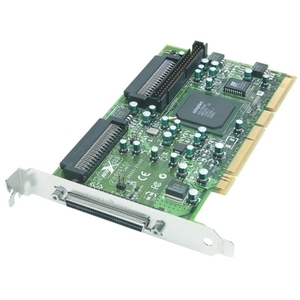

The Adaptec SCSI Card 29320A-R is a half-size, 64-bit 133 MHz PCI-X, single-channel Ultra320 SCSI card with integrated HostRAID. The Adaptec 29320A-R includes a legacy SCSI connector and is a cost-effective RAID 0, 1 and 10 solution. In addition, the Adaptec 29320A-R offers new drivers for HostRAID, both Linux and Windows Server 2003, as well as the same browser-based management tool used by Adaptec RAID products. The Adaptec 29320A-R provides data protection at the fastest SCSI speeds available up to 320 MByte/sec, ideal for mainline storage, streaming video and audio, and other bandwidth-intensive applications.

£108.91 ex vat   £127.97 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerAdaptec, Inc
Manufacturer Part Number2060500-R
Product Model29320A-R
Product Name29320A-R Single Channel Ultra 320 SCSI RAID Controller
Manufacturer Website Addresswww.adaptec.co.uk
Product TypeSCSI RAID Controller

Technical Information
Host InterfacePCI-X
Data Transfer RateUp to 320MBps per Channel
SCSI ProtocolsUltra320 SCSI
RAID Levels1
10
0
Drive SupportUp to 15 x Physical
Platform SupportPC

Interfaces/Ports
Ports1 x 68-pin HD-68 Ultra320 SCSI LVD - SCSI External
1 x 68-pin HD-68 Ultra320 SCSI LVD - SCSI Internal
1 x 68-pin HD-68 Wide Ultra SCSI SE - SCSI Internal
1 x 50-pin IDC Ultra Narrow SE - SCSI Internal

Software
Software Included

Adaptec HostRAID, EZ-SCSI software

Reliability
MTBF1570000 Hour

Power Description
Input Voltage3.3 V DC
5 V DC
Input Current0.6A @ 3.3V DC
0.52A @ 5V DC

Physical Characteristics
Form FactorHalf-length Full-height Plug-in Card
Dimensions9.83cm Height x 17.45cm Width

Miscellaneous
Package Contents
  • 29320A-R Single Channel Ultra 320 SCSI RAID Controller
  • 1 x 5-position Ultra320 SCSI LVD cable with terminator
  • Supported operating systems drivers
    		•
    System Requirements

    Intel PC or equivalent with available PCI slot (2.2 compliant)
    Compatibility

    Supported Operating Systems:

  • Microsoft Windows Server 2003 (HostRaid and Non HostRaid)
  • Microsoft Windows NT 4.0 (HostRaid and Non HostRaid)
  • Microsoft Windows 2000 (HostRaid and Non HostRaid)
  • Microsoft Windows XP (HostRaid and Non HostRaid)
  • RedHat Linux 8.1 (HostRaid and Non HostRaid)
  • RedHat Linux 9.0 (HostRaid and Non HostRaid)
  • SuSE Linux 8.1 (HostRaid and Non HostRaid)
  • SuSE Linux 8.2 (HostRaid and Non HostRaid)
  • Novell NetWare 5.1 (Non HostRaid)
  • Novell NetWare 6.0 (Non HostRaid)
  • Sun Solaris 9 (x86) (Non HostRaid)
  • SCO / Caldera UnixWare 7.1.3 (Non HostRaid)
  • SCO / Caldera Open Unix 8 (Non HostRaid)

    		•
    Certifications & Standards

    RoHS

    Warranty
    Standard Warranty5 Year Limited
