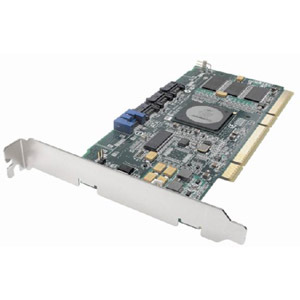

Adaptec 2420SA Serial ATA II RAID Controller (2169300-R)

Up to 300MBps per Port - 4 x 7-pin SATA Serial ATA II - Serial ATA Internal

Waiting for stock  (expected back in stock: 04/07/2008)

The Adaptec Serial ATA II RAID 2420SA card is a four-port controller that supports SATA or SATA II direct attached disk drives. It features the Adaptec AIC-8210 SATA RAID-on-Chip (ROC) ASIC and Adaptec RAID Code (ARC) with standard RAID 0, 1, 5 and 10 as well as an optional Advanced Data Protection Suite. With the industry's most advanced feature set, the Adaptec 2420SA provides the highest level of data protection.

£135.90 ex vat   £159.68 inc vat

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerAdaptec, Inc
Manufacturer Part Number2169300-R
Product Name2420SA Serial ATA II RAID Controller
Manufacturer Website Addresswww.adaptec.co.uk
Product TypeSATA RAID Controller

Technical Information
Host InterfacePCI-X
Data Transfer RateUp to 300MBps per Port
RAID Levels0
1
5
10
Drive SupportUp to 4 x Physical
Platform SupportPC

Processor & Chipset
ProcessorAdaptec AIC-8210

Interfaces/Ports
Ports4 x 7-pin SATA Serial ATA II - Serial ATA Internal

Software
Software Included

Adaptec Storage Manager Software

Power Description
Input Voltage3.3 V DC

Environmental Conditions
Temperature0 °C to 55 °C Operating

Physical Characteristics
Form Factor Half-size Plug-in Card
Dimensions3.1" Height x 6.6" Width

Miscellaneous
Package Contents
  • 2420SA Serial ATA II RAID Controller
  • 4 x 1-meter Serial ATA cables
  • Standard full size bracket - Low-profile bracket also included
  • Quick Install Guide
  • RAID Installation CD (bootable) including drivers and documentation
  • Installation CD including management software and documentation
    		•
    Additional Information

    Standard RAID Features:

  • Hot spares
  • RAID Level Migration
  • Online Capacity Expansion
  • Optimized Disk Utilization
  • S.M.A.R.T. and SNMP support

    Optional RAID Features:

  • Advanced Data Protection Suite including:
    • Hot Space (RAID 5EE)
    • Striped Mirror (RAID 1E)
    • Dual Drive Failure Protection (RAID 6)
    • Snapshot Backup
    • Copyback Hot Spare
    System Requirements
  • Intel or AMD architecture with available 64-bit 3.3v PCI-X slot
  • Supports EM64T and AMD64 architectures
    		•
    Compatibility

    Supported Operating Systems:

  • Windows 2000, SP4 (Professional, Advanced Server, Server, Enterprise) - 32bit only
  • Windows XP, SP1 and SP2 (Home Edition and Professional) - 32bit and 64bit
  • Windows Server 2003, OOB and SP1 (Web, Standard, Enterprise) - 32bit and 64bit
  • Netware 6.5
  • FreeBSD 5.3 and 5.4
  • Red Hat Enterprise Linux 3 - 32bit and 64bit
  • Red Hat Enterprise Linux 4 - 32bit and 64bit
  • SuSE Enterprise Linux 8 - 32bit and 64bit
  • SuSE Enterprise Linux 9 - 32bit and 64bit

    		•

    Warranty
    Standard Warranty3 Year
