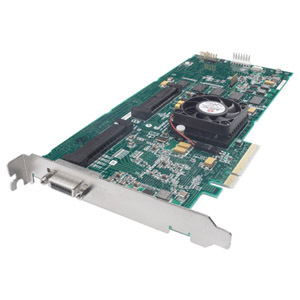

Adaptec 4805SAS 8-Port Serial Attached SCSI RAID Controller (2185800)

128MB ECC DDR2 - - Up to 300MBps per Port - 2 x SAS x4 SAS 300 - Serial Attached SCSI Internal, 1 x SAS x4 SAS 300 - Serial Attached SCSI External

Sorry, this product is currently unavailable.

Please return to our online store home to view alternative products.

*All prices exclude VAT and delivery unless stated. Images are for illustration purposes only.

Product Information

General Information
ManufacturerAdaptec, Inc
Manufacturer Part Number2185800
Product Name4805SAS 8-Port Serial Attached SCSI RAID Controller
Manufacturer Website Addresswww.adaptec.co.uk
Product TypeSAS RAID Controller

Technical Information
Host InterfacePCI Express x8
Data Transfer RateUp to 300MBps per Port
RAID Levels0
1
5
10
50
JBOD
Drive SupportUp to 8 x Physical
Platform SupportPC

Memory
Standard Memory128MB ECC DDR2
Maximum Memory256MB ECC DDR2

Interfaces/Ports
Ports2 x SAS x4 SAS 300 - Serial Attached SCSI Internal
1 x SAS x4 SAS 300 - Serial Attached SCSI External

Environmental Conditions
Temperature0 °C to 55 °C Operating

Physical Characteristics
Form Factor3/4-length Plug-in Card
Dimensions11.51cm Height x 23.98cm Width

Miscellaneous
Additional Information

Optional RAID Features:

  • Hot Space (RAID 5EE)
  • Striped Mirror (RAID 1E)
  • Dual Drive Failure Protection (RAID 6, 60)
  • Snapshot Backup
  • Copyback Hot Spare

    		•
    System Requirements

    Intel or AMD architecture with available 8-lane PCIe slot.
    Compatibility

    Supported Operating Systems:

  • Windows 2000, SP4 (Professional, Advanced Server, Server, Enterprise) - 32bit only
  • Windows XP, SP1 and SP2 (Home Edition and Professional) - 32bit and 64bit
  • Windows Server 2003, OOB and SP1 (Web, Standard, Enterprise) - 32bit and 64bit
  • Netware 6.5
  • FreeBSD 5.3 and 5.4
  • Red Hat Enterprise Linux 3 - 32bit and 64bit
  • Red Hat Enterprise Linux 4 - 32bit and 64bit
  • SuSE Enterprise Linux 8 - 32bit and 64bit
  • SuSE Enterprise Linux 9 - 32bit and 64bit

    		•
